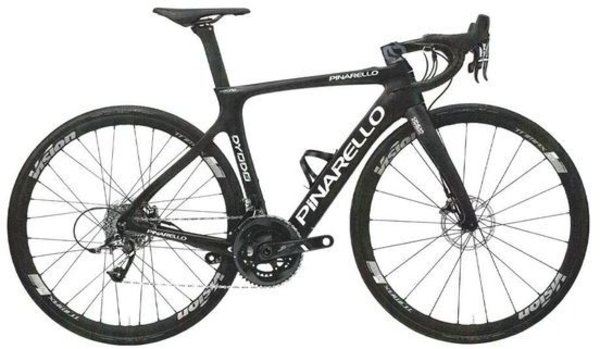

Meet the Dyodo, Pinarello's USA specific e-road bike. This carbon frame, pedal assist bike houses a motor in the rear wheel hub and a rechargeable lithium ion battery located in the frame downtube. Pinarello Team have taken great care to ensure the Dyodo is a true Pinarello.
Dyodo frames were designed using traditional Pinarello design philosophy to ensure consistency throughout both the style and feel of the product.
The complete Dyodo bike offers pedal assistance up to 20mph. The Dyodo allows the rider to select how much power to generate by offering 3 levels of assistance. The Dyodo handles and rides like a Pinarello and will be appreciated by all who ride on the road. Whether you're looking for a little help up hills, or simply less effort to get to where you need, the Dyodo delivers.
2019 Pinarello Dyodo E Asymmetric Carbon Frame
SRAM Force 22 Speed Groupset
Mavic Mavic Aksuim Disc Wheels
Ebikemotion X35 System (with 250Wh Battery Pack)
Drop In Bearing System with Tapered Headset
Internal Cable Routing
Italian Thread BB
Frontal Seal Clamp, Integrated and Aerodynamic
Flat Back Profiles
RAD System Disk Brake
Disk Flat Mount max 160mm
Max Tire 700 x 28mm
FREQUENTLY ASKED QUESTIONS
What is in the box?
Included with the bike will be the charging unit for the battery, 8mm tool to remove rear wheel, and application user guides. .
What is the speed limit of the drive system?
How much does the system weigh?
The total weight of the system is 7.7lbs including battery. The entire bike weighs 26.5 lbs including the system.
What is the battery life?
Battery life varies depending on the riding conditions, such as hilly areas, wind, air pressure in wheels and distance ridden above speed assistance limit (20mph). A reasonable value is approximately a 4,000ft accent in maximum support mode.
How can I extend the battery’s capacity?
An Additional water bottle mount battery will be available. These will be available at a later date. The extra battery will add 250 watts which effectively will double the battery life. Price still to be determined.
Do I have to discharge the battery completely before recharging?
How long does it take to charge from 0 to 100%?
It takes approximately 4hrs.
How many charging cycles before battery degradation?
The battery will allow for 500 charging cycles (0% to 100%). After this point you will start to some reduction in battery capacity.
How often must the battery be charged?
If the bicycle is not used for a long period of time (especially cold weather months), we suggest charging the battery once per month.
Do I need to disassemble the battery before storing the Pinarello Dyodo for a long period of time?
This is not necessary and not recommended. Leave the battery in the bike.
How can I clean my Pinarello Dyodo?
Do not submerge or clean with high-pressure cleaner any drive system component. Clean all drive system components carefully with a cloth or a soft brush. Make sure all components are perfectly dry before using.
Can I ride Dyodo in the rain?
Yes, the system is waterproof. .
Do I have to service the drive system?
No, the drive system does not require maintenance. .
Is it possible to disassemble the battery?
Do not disassemble the Battery by yourself. The Battery does not require maintenance. It must only be opened by qualified experts and repaired with original spare parts. Unauthorized opening of a system will void system warranty.
Is there an app to see bike information while riding?
Yes, there is a dedicated mobile app and a web app for your Pinarello Dyodo made by ebikemotion. You can download this mobile app from Google Play or Apple Store
Do you need the app to operate the Dyodo?
No, you can get all necessary information from the button and light on toptube, please see Quick Start Guide for details.
I have a question or a problem with the drive system, what do I do?
Contact Pinarello US and we will handle getting the bike shipped to the appropriate location to be repaired or replaced.
Is there a diagnostic tool?
Yes, the user App has a basic diagnostic tool. Pinarello dealers will have access to the dealer app for more detailed analysis
Motor and Battery Warranty
2 year motor and battery warranty.
How many sizes does the Dyodo come in?
The Dyodo comes in 5 sizes, geometry listed below:
Pedals sold separately
Electric Bike Report Published on Apr 22, 2019 Pinarello Dyodo
Here is a closer look at the new 27.5 pound Pinarello Dyodo electric road bike with carbon fiber frame and Ebikemotion X35 system. There will be an extra battery option as well. Priced at $7,999. This was from the Sea Otter Classic 2019.
